Base kit of a string making jig from Reign Bowstring

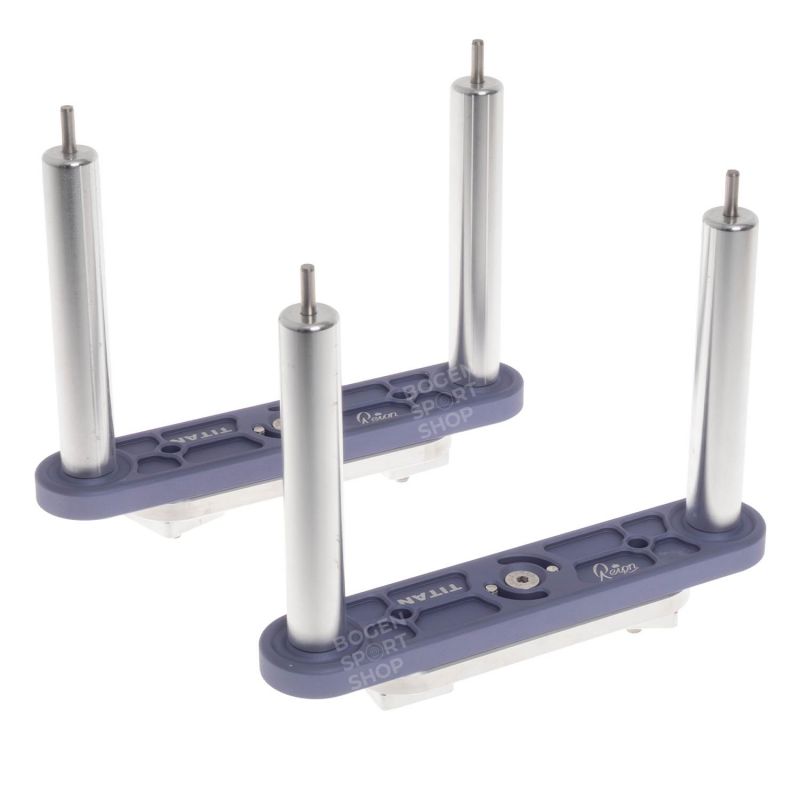

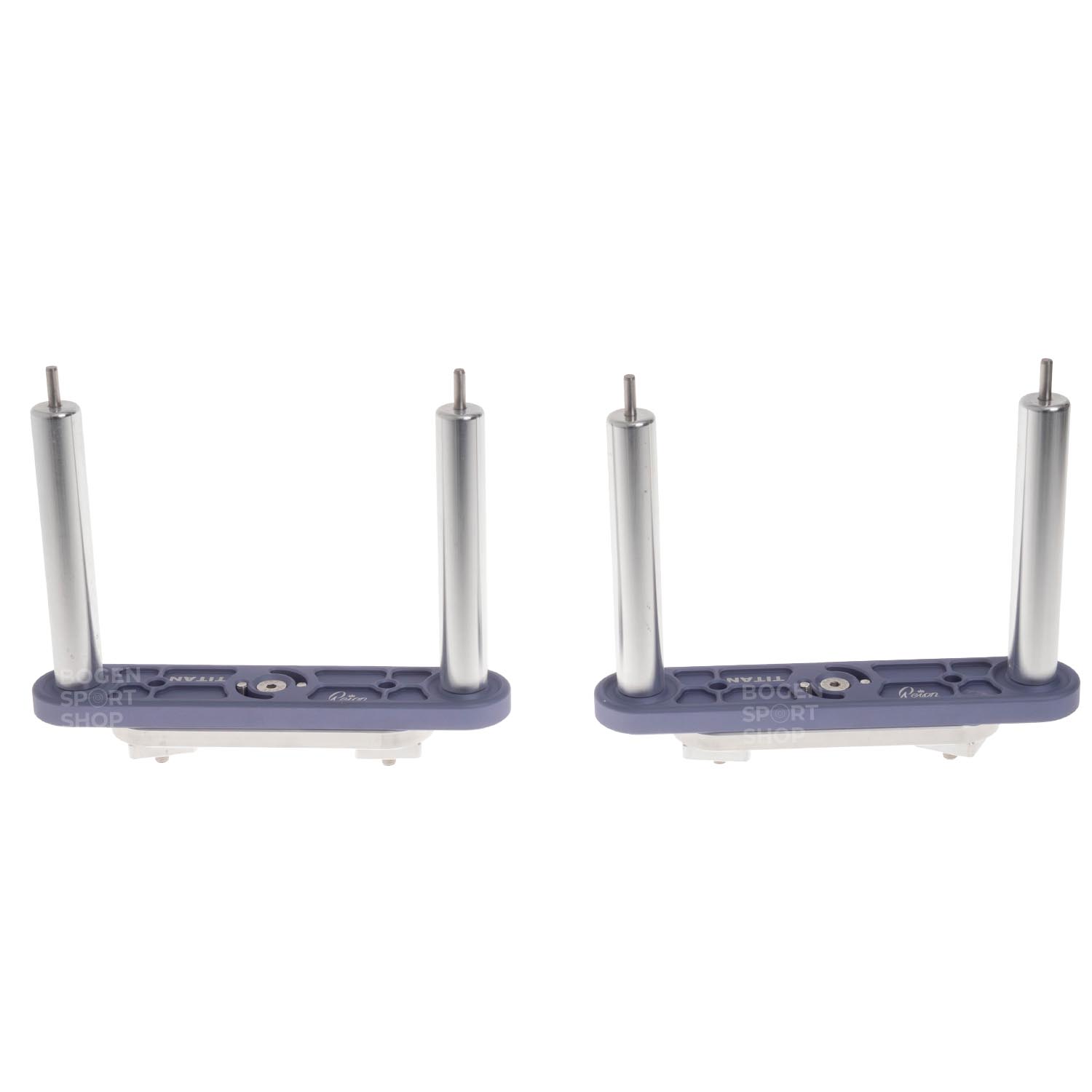

This product is an incomplete base kit! The package includes two string holder blocks, designed for use on a mounting rail. The rail is not included in the delivery! A 41 x 41 mm (outer dimension) C-rail is required, with a maximum wall thickness of 2.5 mm. The rail must have at least 36 mm of space for the sliders, which are 35 mm wide.
Suitable rails include, for example, Halfen mounting rails HM 41/41 or HZL 41/41, Unistrut P1000, Hilti profile rails MQ-41, Fischer FUS 41 mounting rails, Walraven RapidStrut, Pohlcon Jordahl JM K 41/41 and JML K 41/41 profiles, Sikla MS 41/41, as well as the modular profile system of the Varifix C-mounting rail 41/41 from Würth.
Required for complete assembly: 41mm Unistrut rail, 4mm & 5mm Allen key and string making skills.
Key features
- Extremely sturdy construction made of aluminum and stainless steel
- Both holders can be rotated 90°
- Two blocks per holder ensure a very secure grip in the rail
- The flexible combination with a mounting rail allows for an almost unlimited range of minimum and maximum string lengths
Technical data:
Weight: 2,6 kg
Dimensions pins:
- Diameter for strings: 6 mm
- Base diameter: 25 mm
- Length: 145 mm
- Distance on rotating frame: 200 mm
