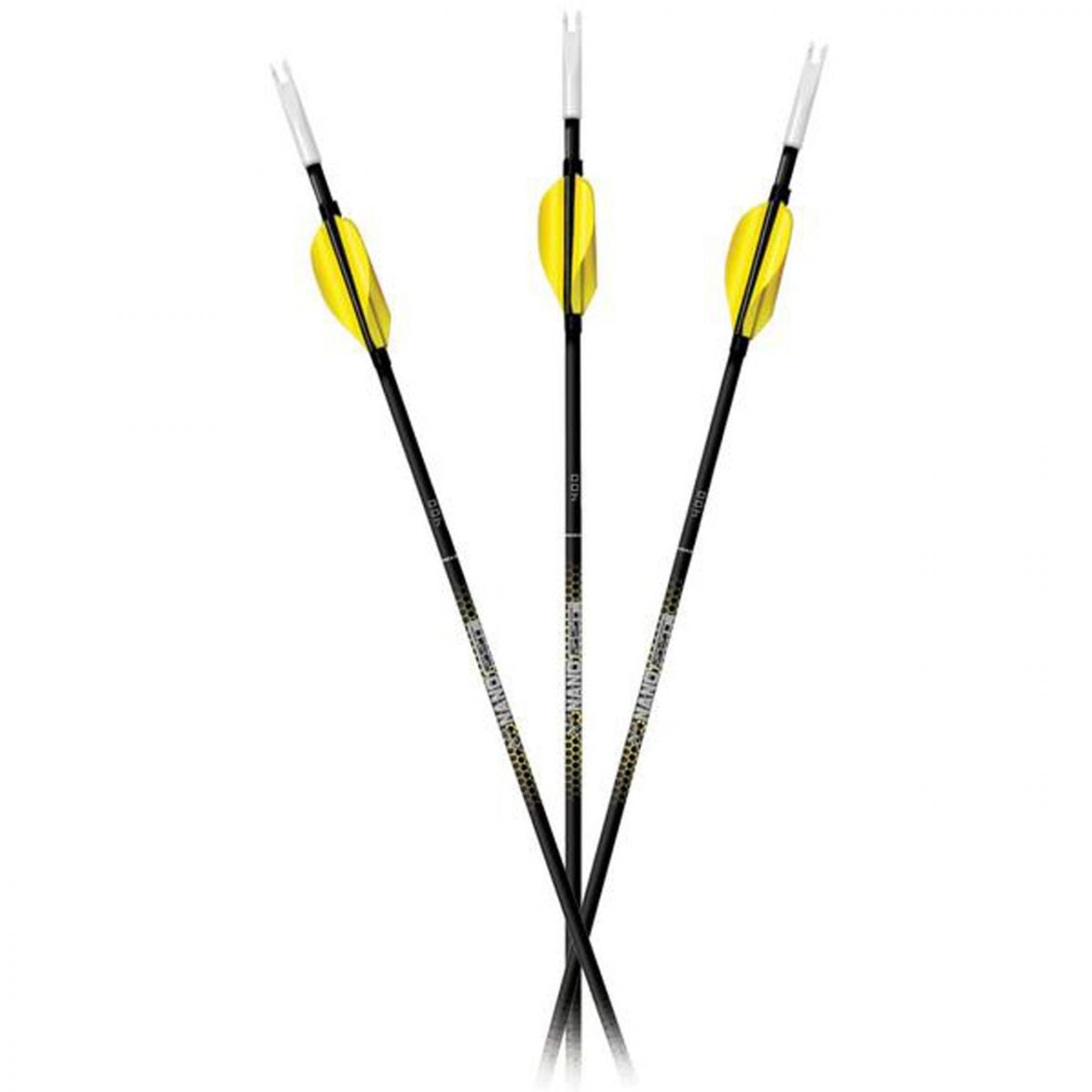

Small diameter shaft from Carbon Express.
Key features:
- Especially developed for recurve archers
- Used three spine areas with the central section stiffest to allow for proper clearnace
- Ultra slim parallel shaft that dramatically reduces cross-wind drift
- 30-ton carbon construction for straightness and ensuring faster recovery out of the bow and superior downrange accuracy
Technical specifications:
Material: |
All carbon |
Diameter: |
0.229" max |
Straightness Tolerance: |
±0.002 |
Weight Tolerance: |
±1 grain |
Available Spines: |
1000 - 400 |
Uncut length (approx): |
29.25-32.25" (spine dependant) |
Included componenets: |
None |
Designed for: |
Recurve archery - Target and Field. FITA/NAA/NFAA |
Spine Specifications and Components:
Components listed are those produced by CX only. Other components may fit!
Technical Specifications:
Spine |
Weight (GPI) |
Diameter (Inch) |
1000 |
5.11 |
0.195 |
900 |
5.57 |
0.198 |
800 |
5.88 |
0.201 |
750 |
6.38 |
0.204 |
700 |
6.46 |
0.205 |
650 |
6.95 |
0.209 |
600 |
7.33 |
0.212 |
550 |
7.79 |
0.215 |
500 |
8.18 |
0.219 |
450 |
8.97 |
0.225 |
400 |
9.62 |
>0.229 |
*Grains per Inch
