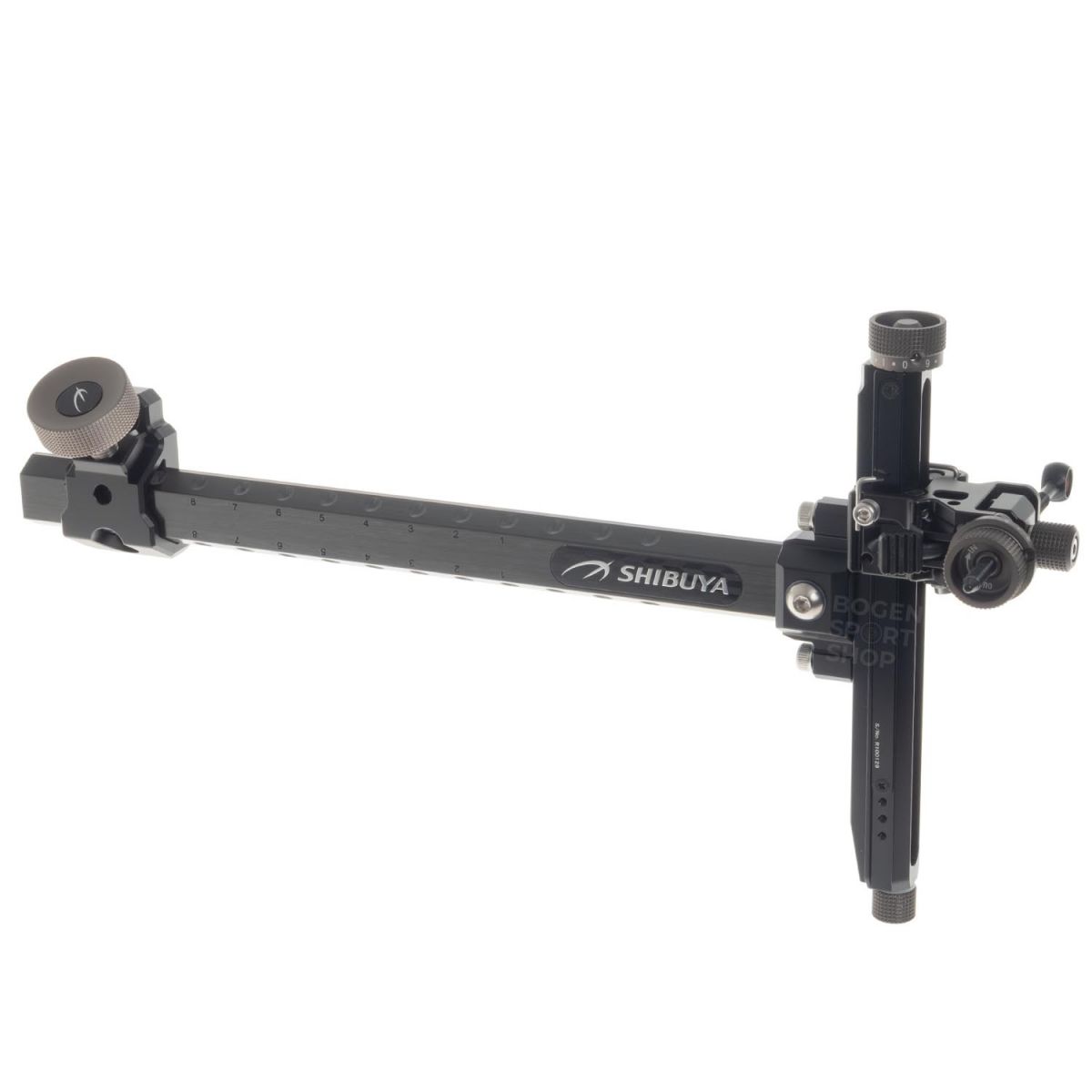

Recurve sight from Shibuya.
The Shibuya Ultima RC is known worldwide for its quality and functionality, used by archers at the World Cup, World Championships and the Olympics, in target as well as field and 3D. Now there is the fourth edition of the incredibly popular sight, with some changes to the previous model.
Key features:
- The Ultima RC IV is the current successor of the Shibuya Ultima RC III, with small optimizations.

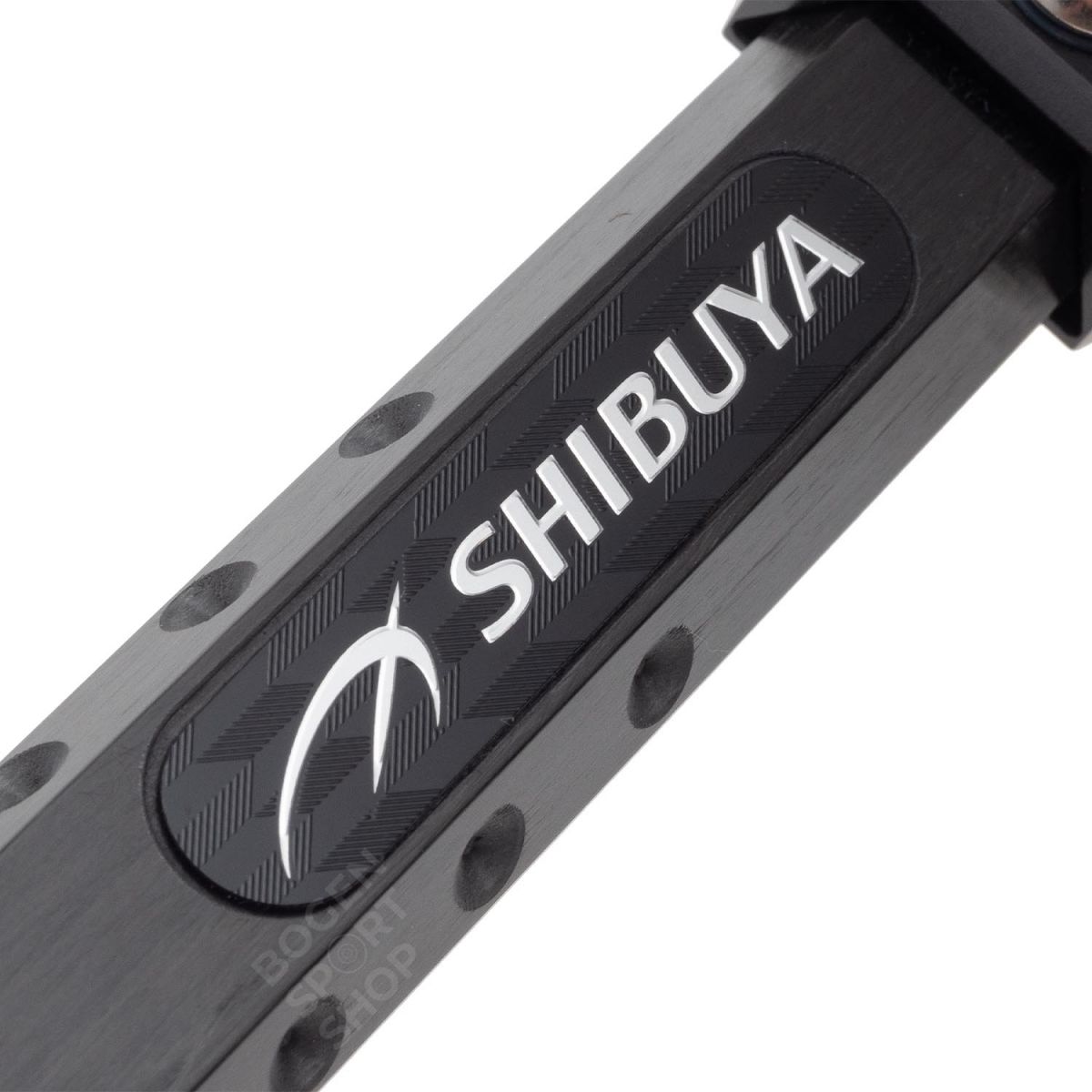

- Carbon bar and most parts made of aluminum: lightweight but very stable design.

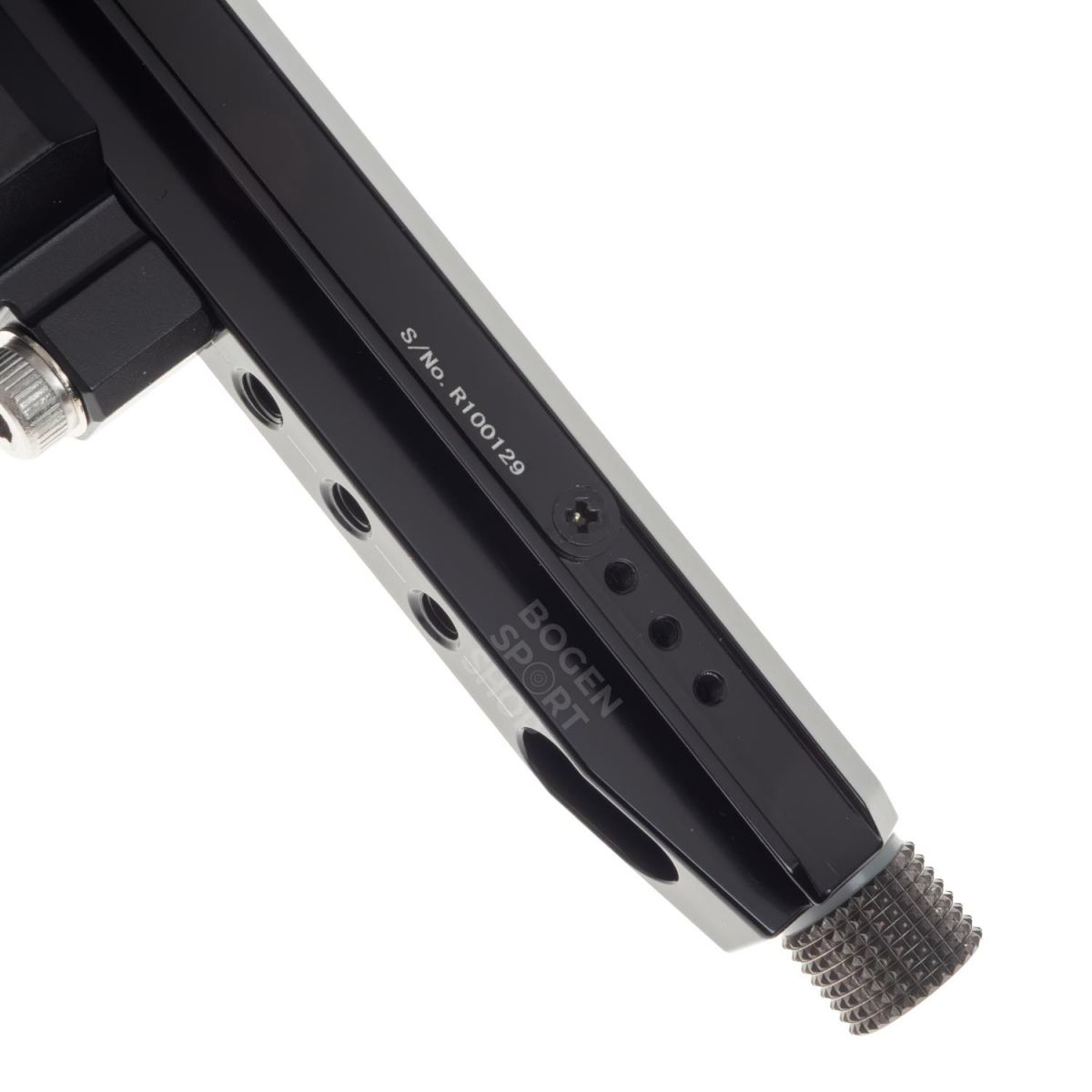

- The vertical threaded rod is suspended in a damped manner to prevent vibration and noise.

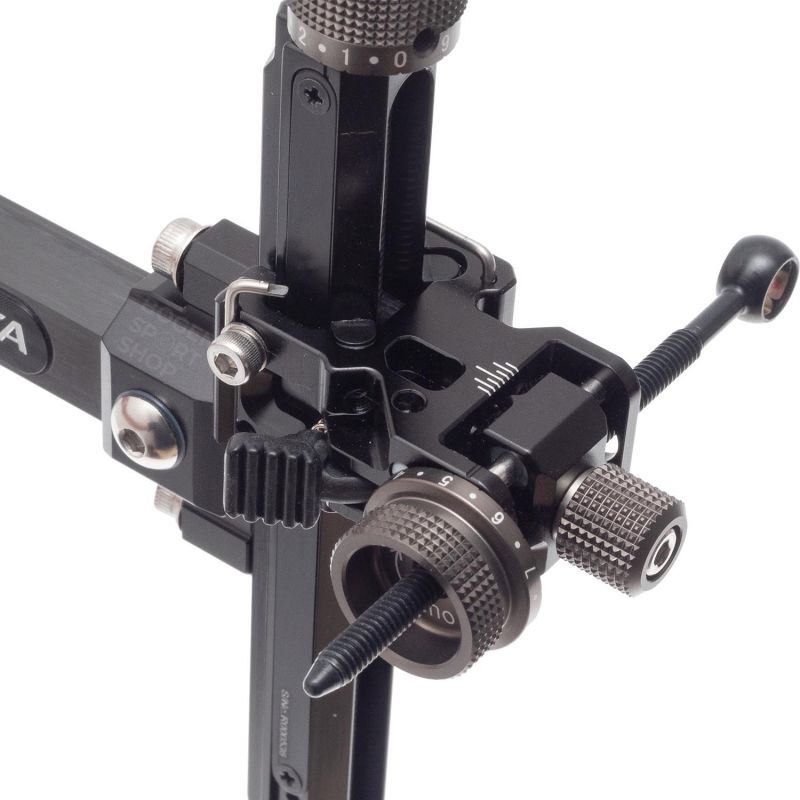

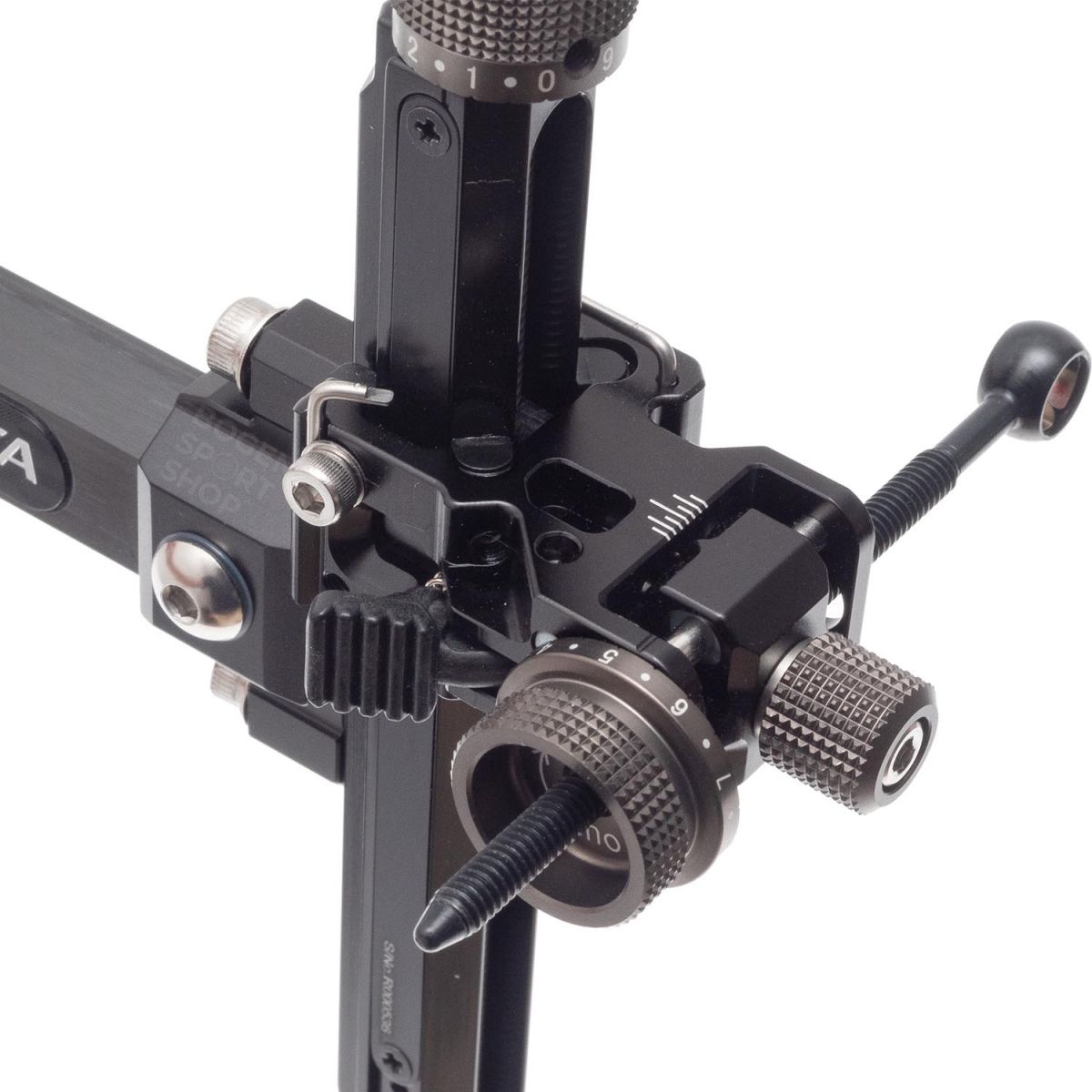

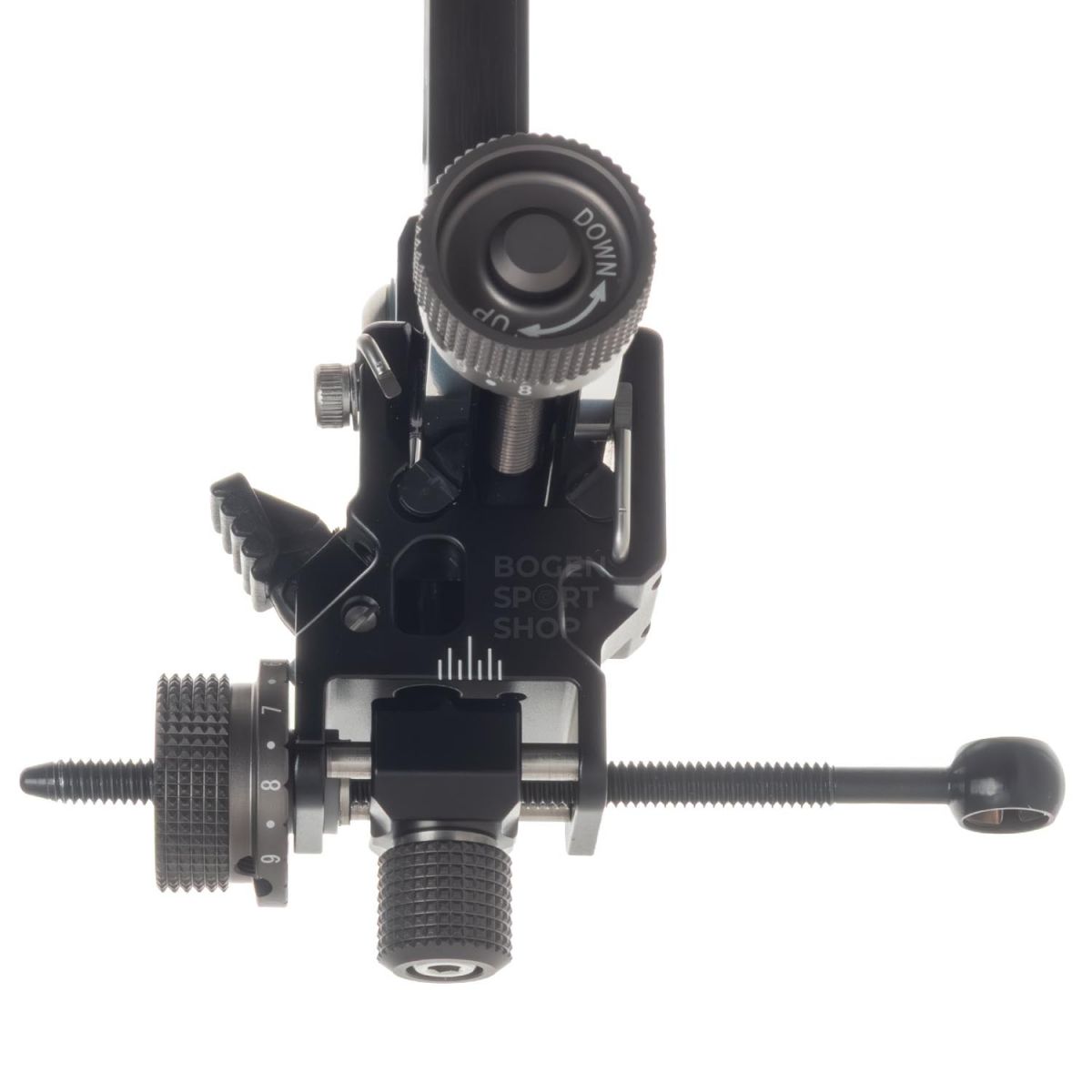

- Sight sled is guided by two slanted surface with plastic glides, thus no play between the sled and rail.

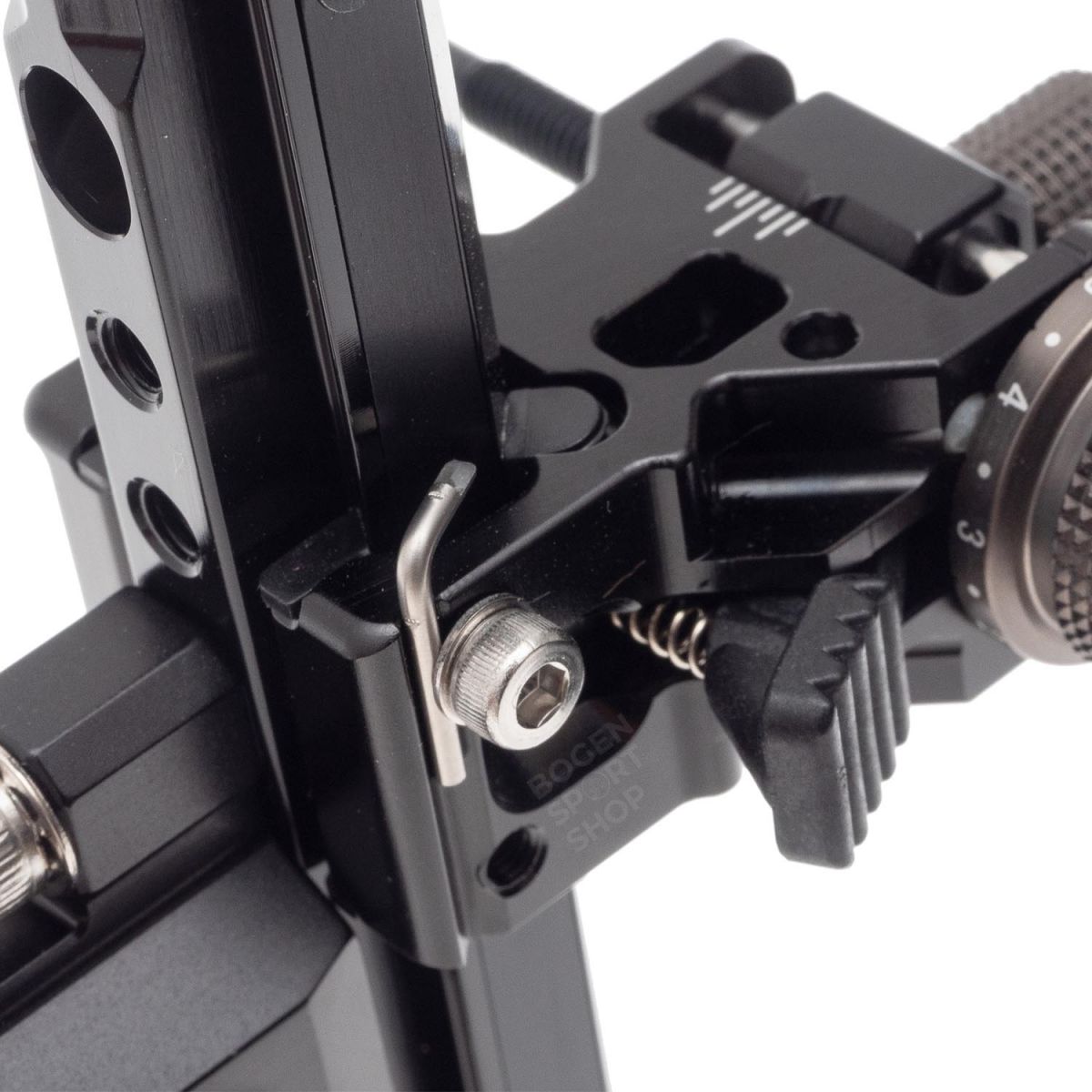

- Large knob for quick adjustment or removal of the sled.
- Fine adjustment in horizontal and vertical axis 1/480" (0.05 mm) per click.

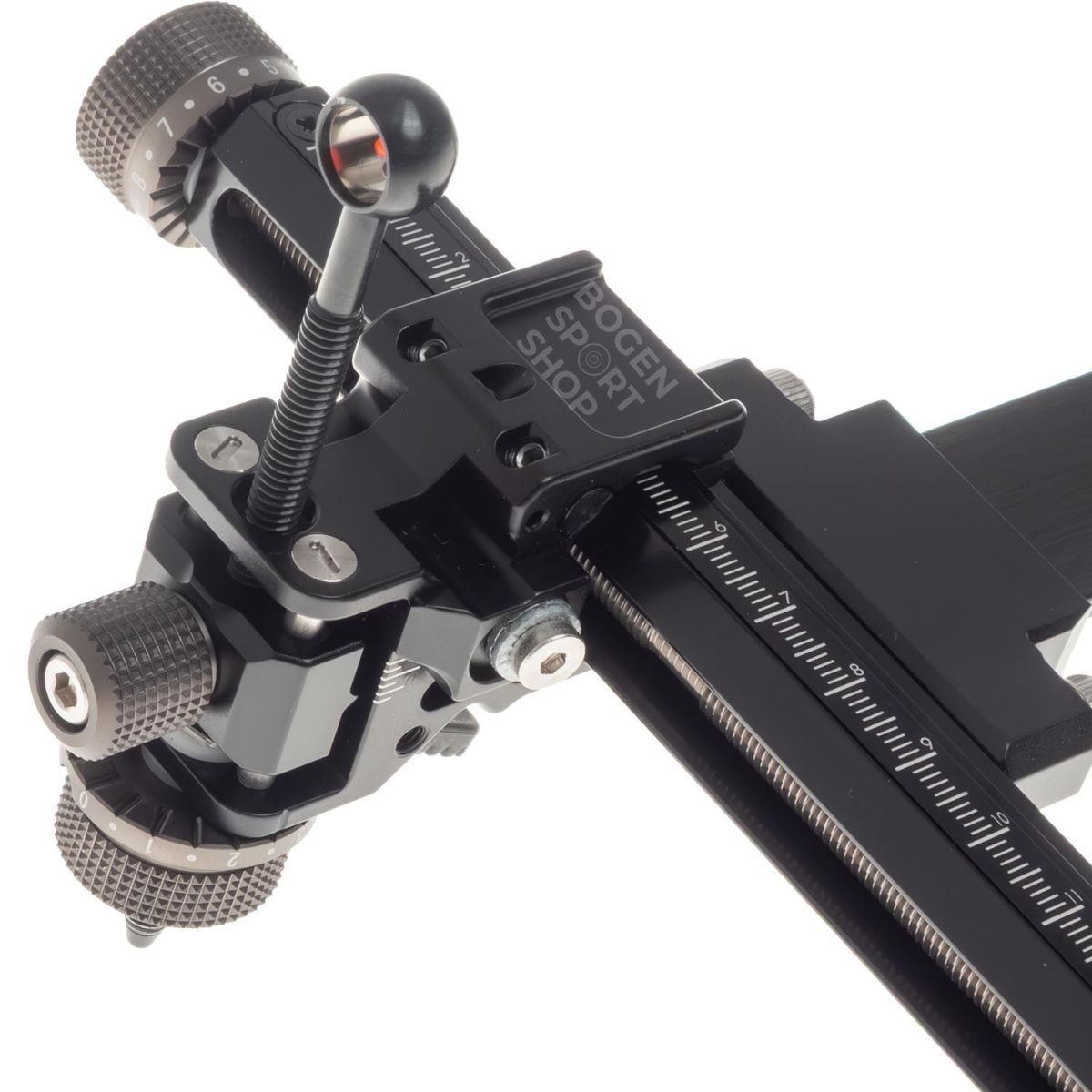

- Lasered, indestructible scale that can also be removed. This makes the sight rail equally suitable for RH and LH.

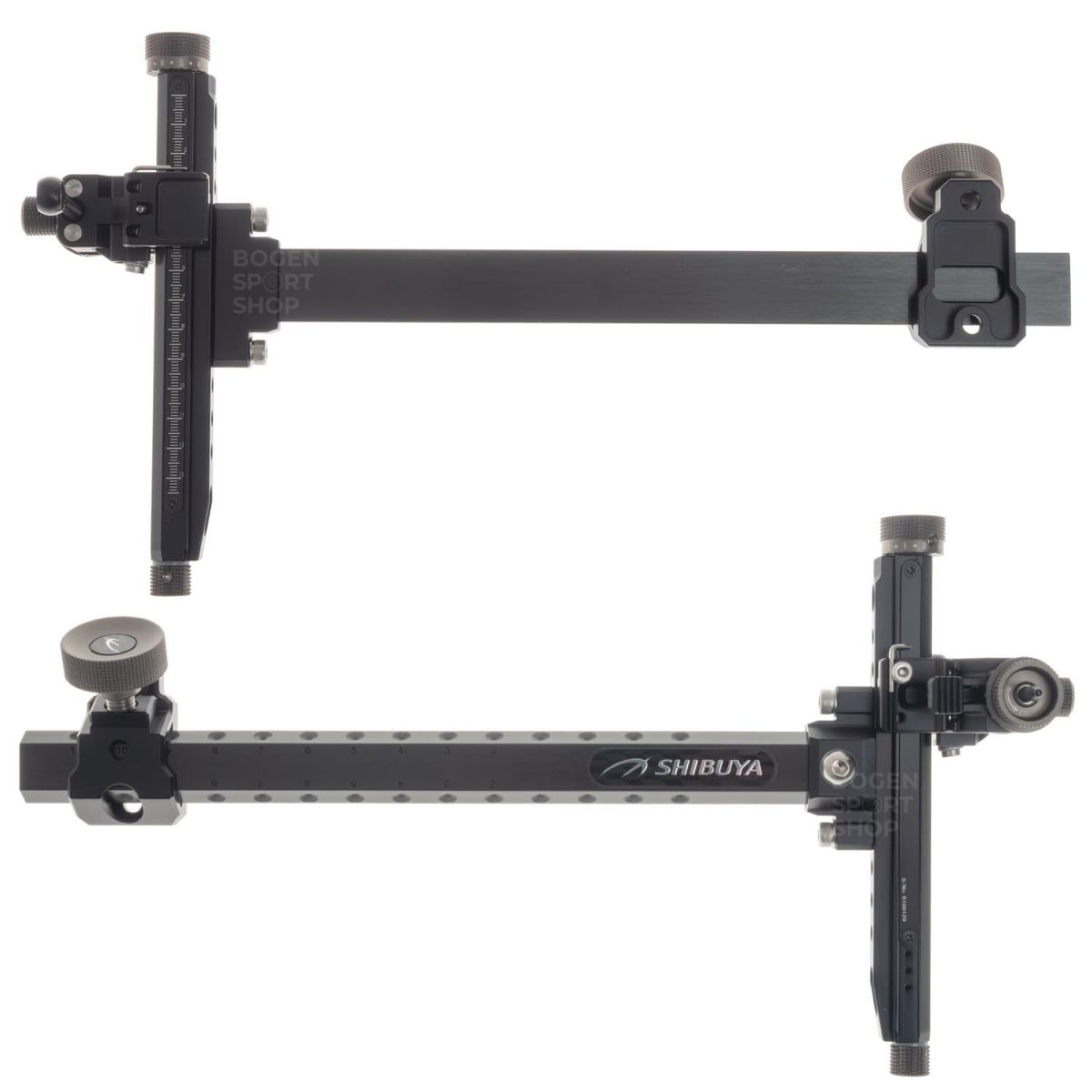

- New, narrower mounting block that does not protrude unnecessarily even with very narrow risers (and is also ambidextrous).
Technical specifications:
| Handedness: |
Left and Right-Handed models. |
| Extension length: |
9" / 230 mm (6.5" / 165 mm adjustable range) |
| Vertical bar length: |
5,20" / 132 mm (4.2" / 107 mm adjustable) |
| Adjustment accuracy: |
20 Clicks and 1.0 mm travel per revolution= 0.05 mm / Click |
| Thread: |
UNC 8-32 (standard recurve scope or pin) |
| Mass Weight: |
211 g |
